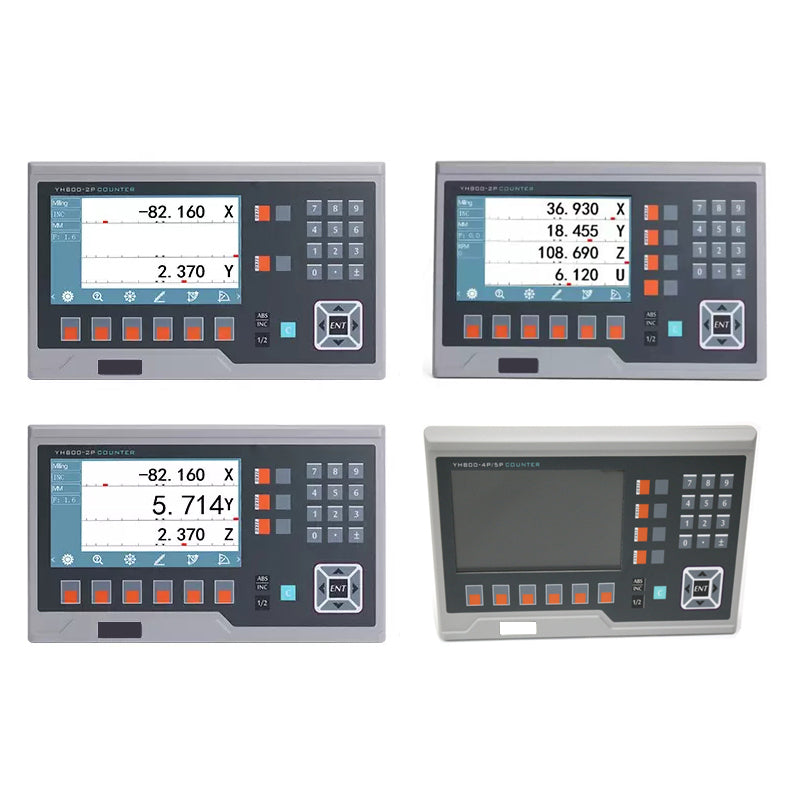

13 Languages 2/3/4/5 Axis YH800 Big LCD Metal Casing DRO Digital Readout Display for Milling Lathe Machines

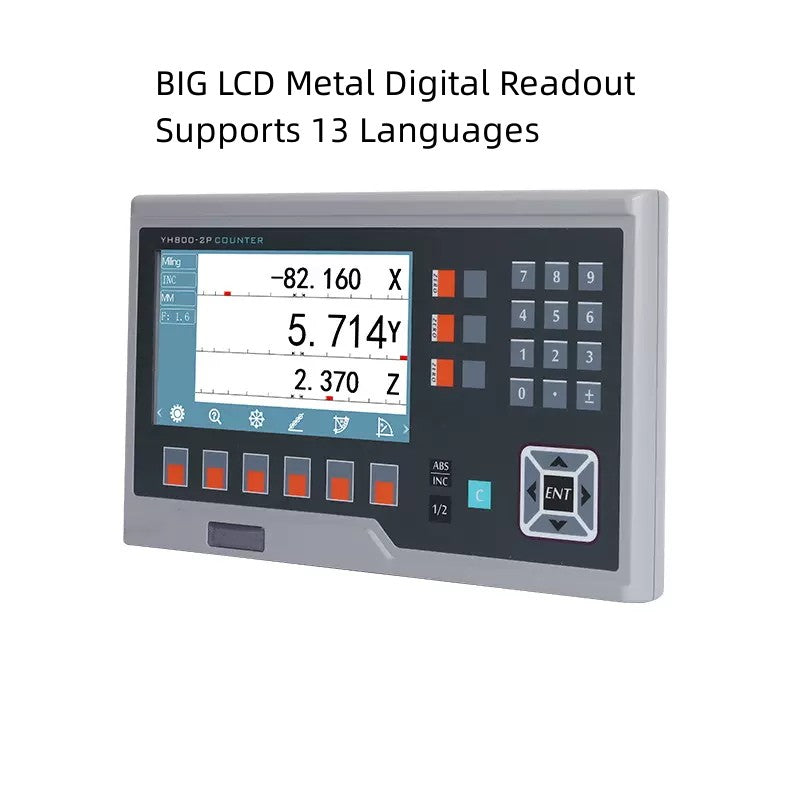

13 Languages YH800 Big LCD Metal Casing DRO Digital Readout
Package include:
Digital readout x 1pc,
Install arm x 1pc,
English manual x 1pc,
Power cord x 1pc,
Dust cover x 1pc
Support 13 Languages
1.English
2.русский
3.Magyar
4.Deutsch
5.Polski
6.português
7.italiano
8.український
9.Thai
10.Chinese
11.Türkçe
12.Romanian
13.Ελληνικά
YH800 BIG LCD DRO Parameters
1. Voltage: AC 80V to 240V ; 50-60HZ,can be use at whole world
2. Power: 15W
3. Displaying: 7'' true color LCD screen
4. Working Temperature: -10℃ to 60℃
5. Storage Temperature: -30℃ to 70℃
6. Relative Humidity: <90%(25)>
7. Axis Number: 2 axis,3 axis,4 axis , 5 axis
8. Input Signal: TTL or RS422
9. Input signal Frequency: <50MHZ
10. Resolution (Linear Encoder): 0.1 um, 0.2 um,0.5 um,1 um,2 um, 2.5 um,5 um,10 um,20 um,25 um
11. Highest Resolution(Rotary Encoder): <1000000ppr
12. Radius/diameter conversion
13. BIG LCD DRO YH800
If need RS232 communication function, or touch probe, please contact us for customized.
