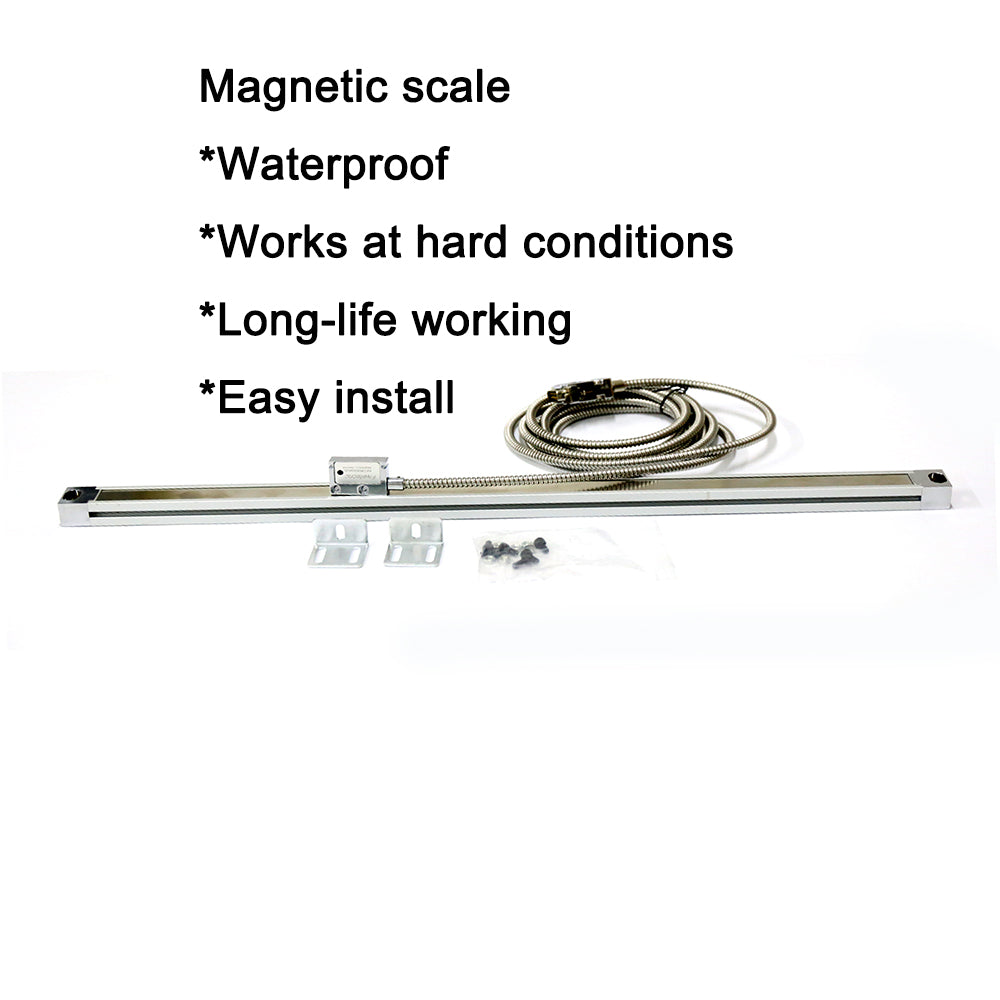

5um Magnetic Scale Magnet Encoder Sensor Tape with Aluminum Profile
Description
5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile
Order include:
Magnetic sensor x 1pc
Aluminum profile with tape x 1pc
Install screws x 1 bag
Magnetic sensor details:
Resolution:0.005mm
Voltage: 5VDC
Output signal: TTL signal
Magnetic sensor cable length:3 meter
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 0V | A | 5V | B |
9DB Pin RS422 Signal(option):
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| A- | 0V | B- | Z- | A | 5V | B | Z |
We send TTL signal by default, if need RS422 signal, please leave a note when order it, or please send a message to seller before order. thank you
5um Magnetic Scale Magnet Encoder Sensor Tape with Aluminum Profile
$65.00
