ALSGS AL-310S Power Feed X Axis 450 in-lb Torque Power Feeder Milling Machine 0-200PRM 110V 220V for Bridgeport Similar Knee milling machines

Power feed details:

Model: Al-310S;

Type: X traverse;

Voltage: 110V or 220V 50/60Hz

Rotate speed: 0-200 RPM;

Max torque: 450 in-lb;

Max feed rate: 650mm/min;

Max return speed: 850mm/min

Small volume and easy installation power feed, jog function operates at any feed speed;

Excellent speed control in the entire range
Noiseless direction changes, better surface smoothness and power table feed won't vibrate or strain in low speed
Safety feature to protect transmission gear and electronic components, as to meet the requirements of ergonomics. The two gears of this power table feed will not mesh and wear at the same spot, this not only increases durability and longevity but even reduces noise over time.

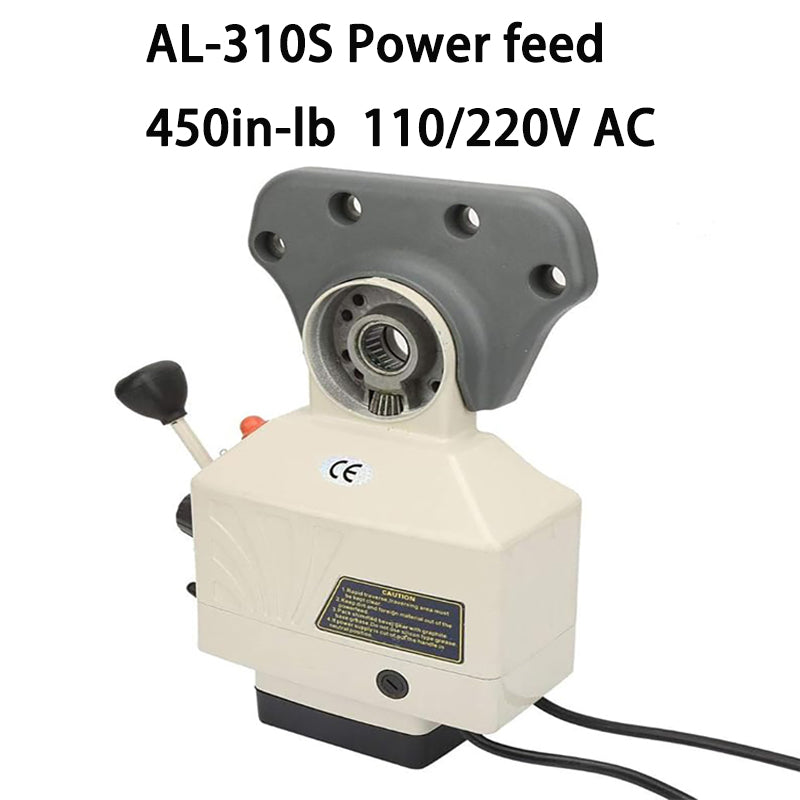

AL-310S X-Axis Power Feed Kit
Our AL-310S x-axis feed kit features a robust shell and precise components. It works efficiently and quietly on a milling machine with a 5/8" shaft end. Besides, it is designed with buttons and knobs for simple operation. It is a good choice for your milling machine.

X-axis Power Feed
Long Service Life
High Efficiency & Precision
Quiet & Easy Operation

Specifications
Voltage: 110V or 220V 50/60Hz
Rotate Speed: 0-200 RPM
Max Torque: 450 in-lb
Max Feed Rate: 650 mm/min
Max Return Speed: 850 mm/min
Control: Manual
Power feed dimension: 8"x4.5"x13" / 203x114x330mm
Package Size: 11.8"x8.7"x13.8"
Gross Weight: 16.5 lbs
