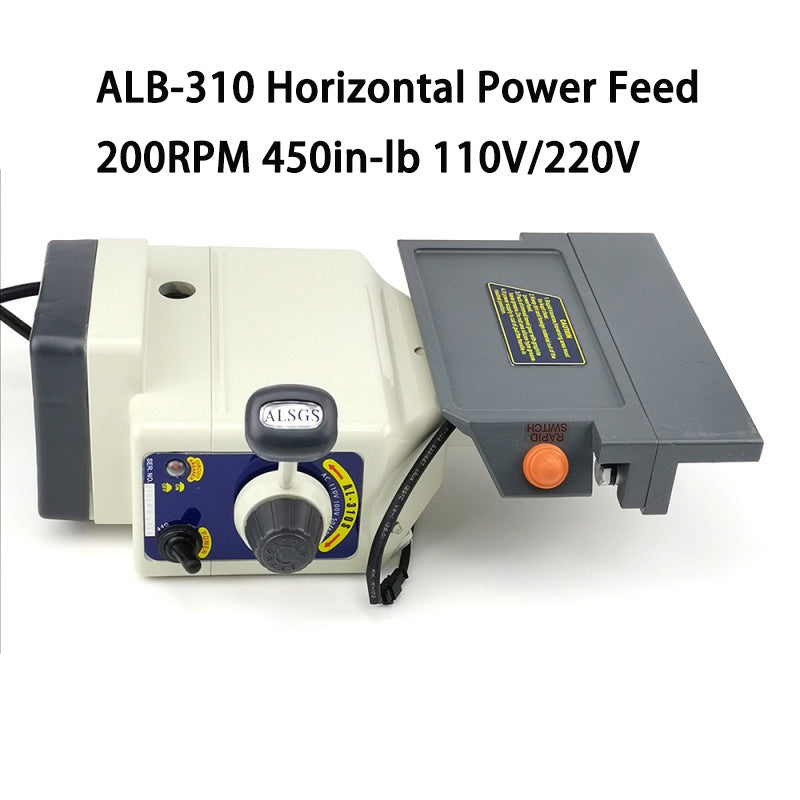

ALSGS ALB-310 X axis Horizontal Power Feed 200RPM 450in-lb 110V 220V Power feeder auto table Feed for milling machines

ALSGS ALB-310 X axis Horizontal Power Feed 200RPM 450in-lb110V 220V Power feeder auto table Feed for milling machine

Variable Speed Control for Speed Adjustment On The Fly
Rapid Traverse Button
Includes Table Stops With Switch For Safety
Includes Everything Needed to Mount on Milling Machines Listed, Will Also Fit Many Other Similar Type Models

This model use 110V or 220V , Single Phase 50/ 60Hz Power.

This set includes everything you should need to install this power feed on your machine, including the power feed unit, mounting bracket, drive gear, shims, safety stop with track, and hardware. It is a very useful power feed system for the X axis to provide a smooth, variable speed drive to the traverse of the table. This will enable control of the cut finish to a much greater extent than achievable by hand. With simple controls for left/right movement, auto stop in any position on the table provided by movable stops, overload protection and a fast traverse button giving 40" per min speed. Simple to fit and powered by a standard 230V three pin plug, Or 110V so no wiring is required. N.B. For ZX series mills only.

Horizontal Power Feed

Model: ALB-310S(X)

Speed range:0-200 rpm

Max torque:450in-lb

Input voltage:110V or 220V

Install shaft dimension:17mm

Applications: Milling ,drilling machines
