Fivetecnc High Accuracy 0.5um 0.1um TTL RS422 Linear Scale Glass Encoder 0.5Micron

Fivetecnc high accuracy 0.5um / 0.1um Linear Scale

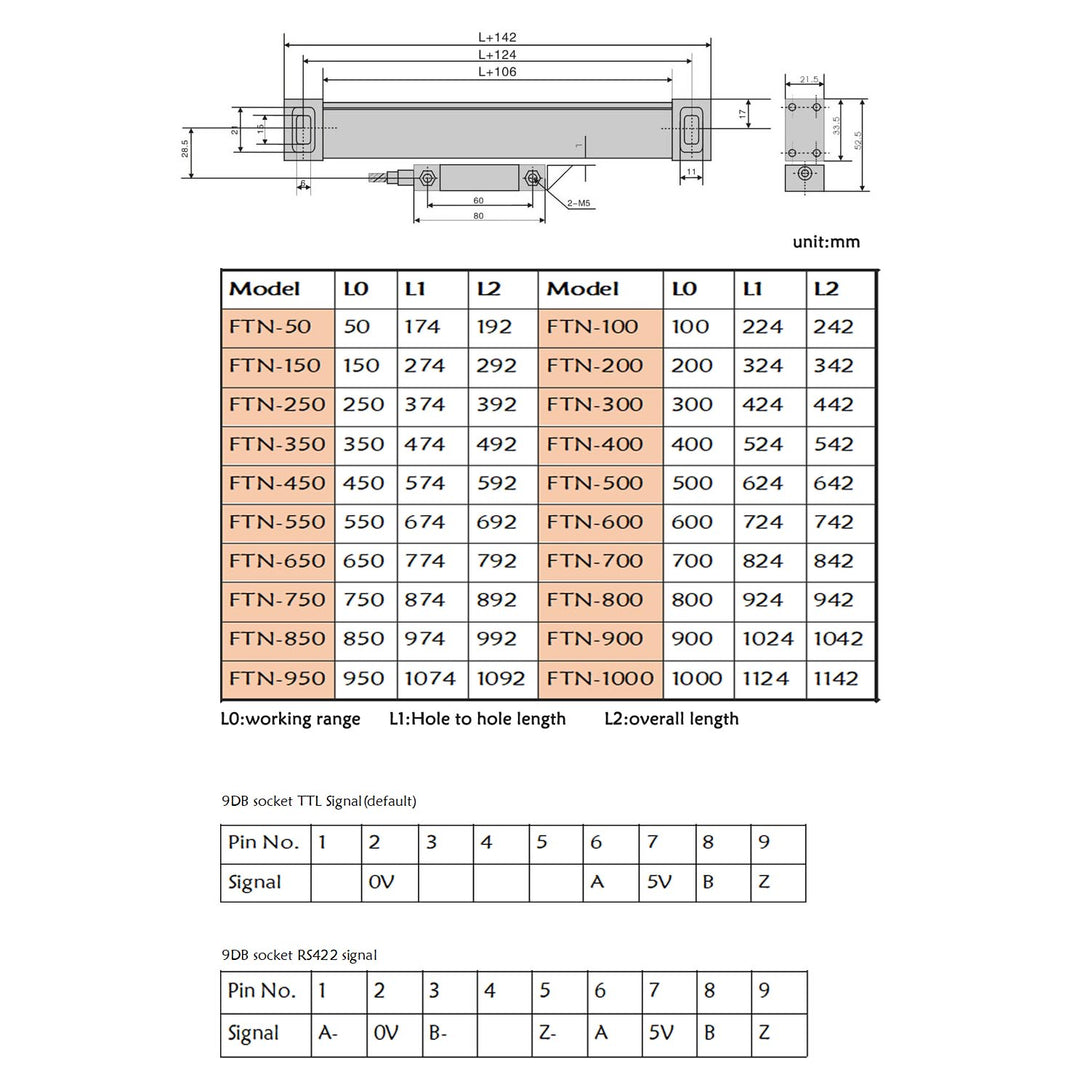

Linear scale parameter:

1. Travel (measuring) length: 0-1000mm

2. Total (overall) length: Travel length + 142mm

3. Plug: DB9

4. Resolution: 0.5micron ( 0.5um ) / 0.1um

5. Input voltage: 5V

6. Output signal: TTL AB or RS422 AA-BB- (If need Z signal, pls contact us when order it, thank you.)

7. Cable length: 3 Meter

Package include:

Linear scale x 1 piece,

Dust cover x 1 piece,

Screw x 1 bag,

L install bracket x 1 piece
