IBB MSR5000 Magnetic Sensor Read Head IP67 Dustproof Oilproof

MSR5000G Magnetic Sensor Parameter

1.Model: MSR5000G

2.Environment: waterproof/oil-proof/vibration-proof/dust-proof

3.Input: 5V/24V DC

4.Reader cable length: 3 meters

5.Installation distance: max. 4mm （2mm recommended）

6.Output: TTL AB Signal / RS422 AA-BB-ZZ- Signal

7.Working speed: Max. 20m/s

8.Operating temperature: -10~+70℃

9.Waterproof level: IP67

10.Product features: strong shock, oilproof, dustproof, waterproof, high temperature resistance

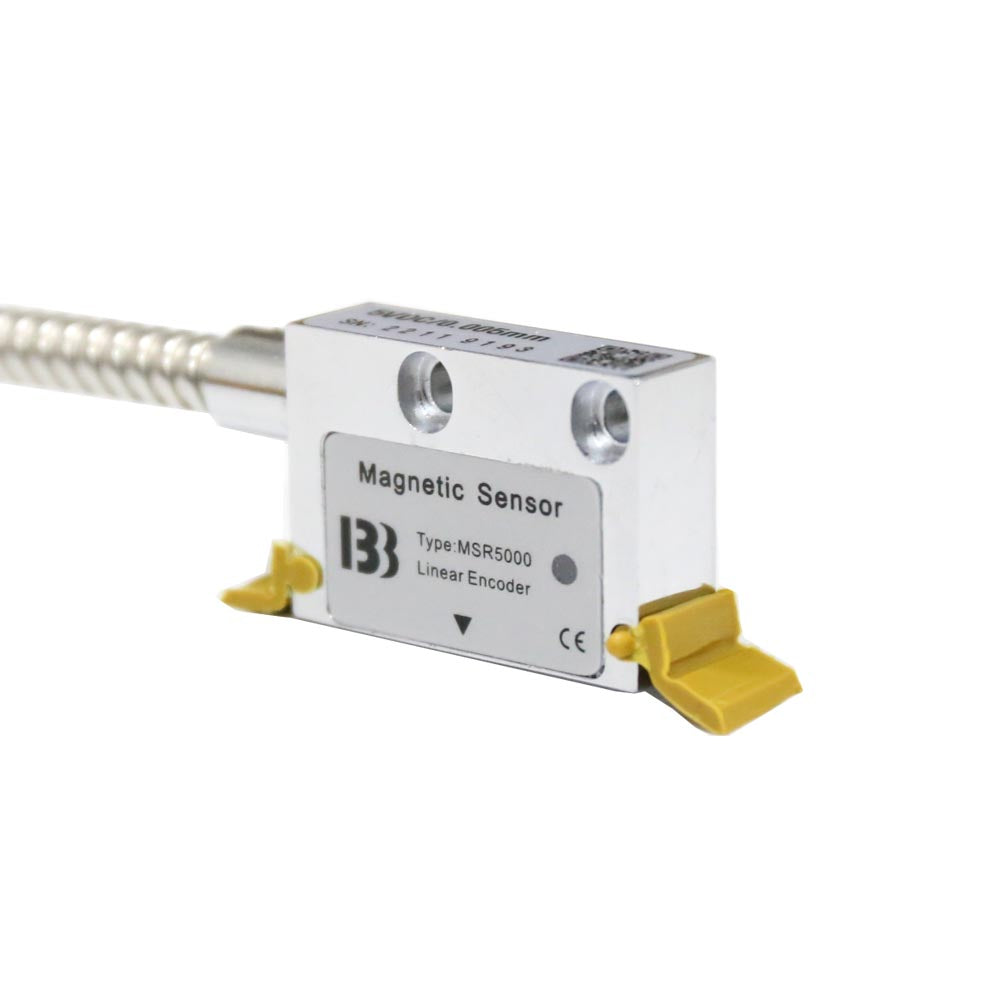

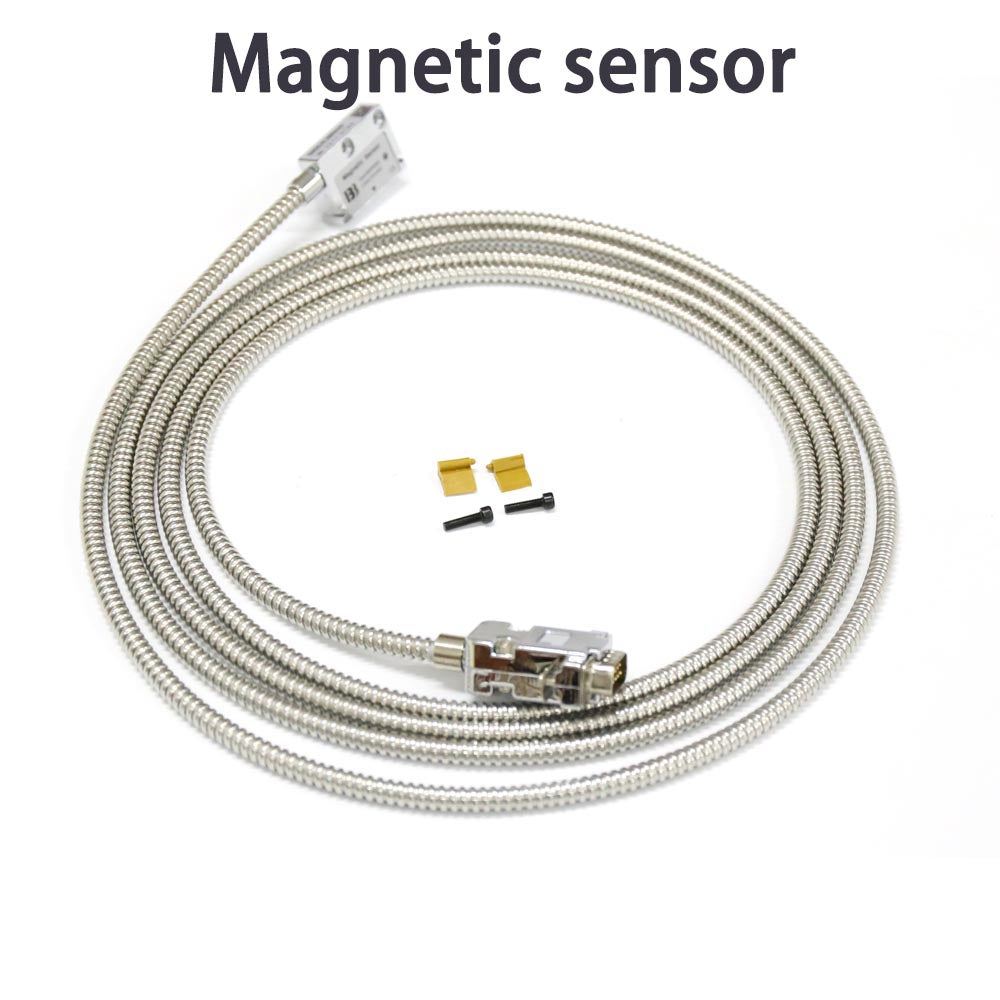

MSR5000 Magnetic Read Head Outline

This product converts linear motion into orthogonal pulse signal output through non-contact magnetic induction, which can accurately measure length, acceleration, etc., and has strong shock, oilproof, dustproof, waterproof, high temperature resistance and other properties. Small design, easy installation, save installation space, straight length up to 100 meters or more, suitable for milling machines, grinding machines, stone cutting machines, wood cutting machines and other occasions.

Magnetic Read Head Notes

1. When installing this product, if the deviation is too large, it will affect the accuracy of use, or even cannot be used

2. Please do not use corrosion, acid and alkali, direct sunlight and other occasions that exceed environmental requirements, otherwise it may cause failure

3. If it is hit strongly, it may send out a wrong pulse signal

4. The tensile force of the product connection cable cannot exceed 30N

5. When there is a high-voltage line or power line nearby, please use a metal conduit to sheath the cable to prevent failure

6. The shielded wire should be well grounded; When the wire sleeve metal soft casing, both ends of the metal soft sleeve need to be well grounded

7. Blue light indicates normal voltage, red flashing indicates fault (excessive non-contact spacing, poor grounding, strong external interference
