M503 Magnetic Scale Sensor DRO Display Integrated Embedded Magnet Magnetic Tape with Stain Belt Profile Woodworking Measurement

Package include:

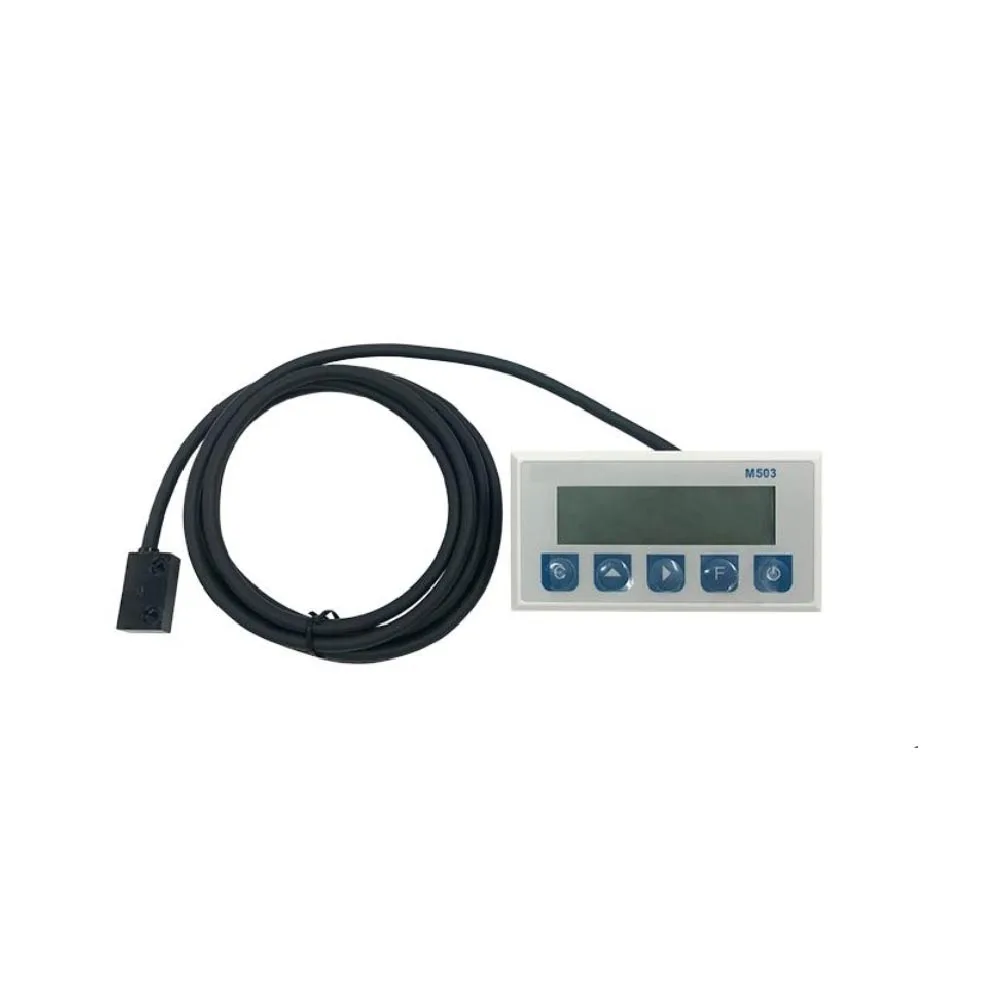

Option "M503 Display ",include M503 magnetic display with sensor x 1 piece;

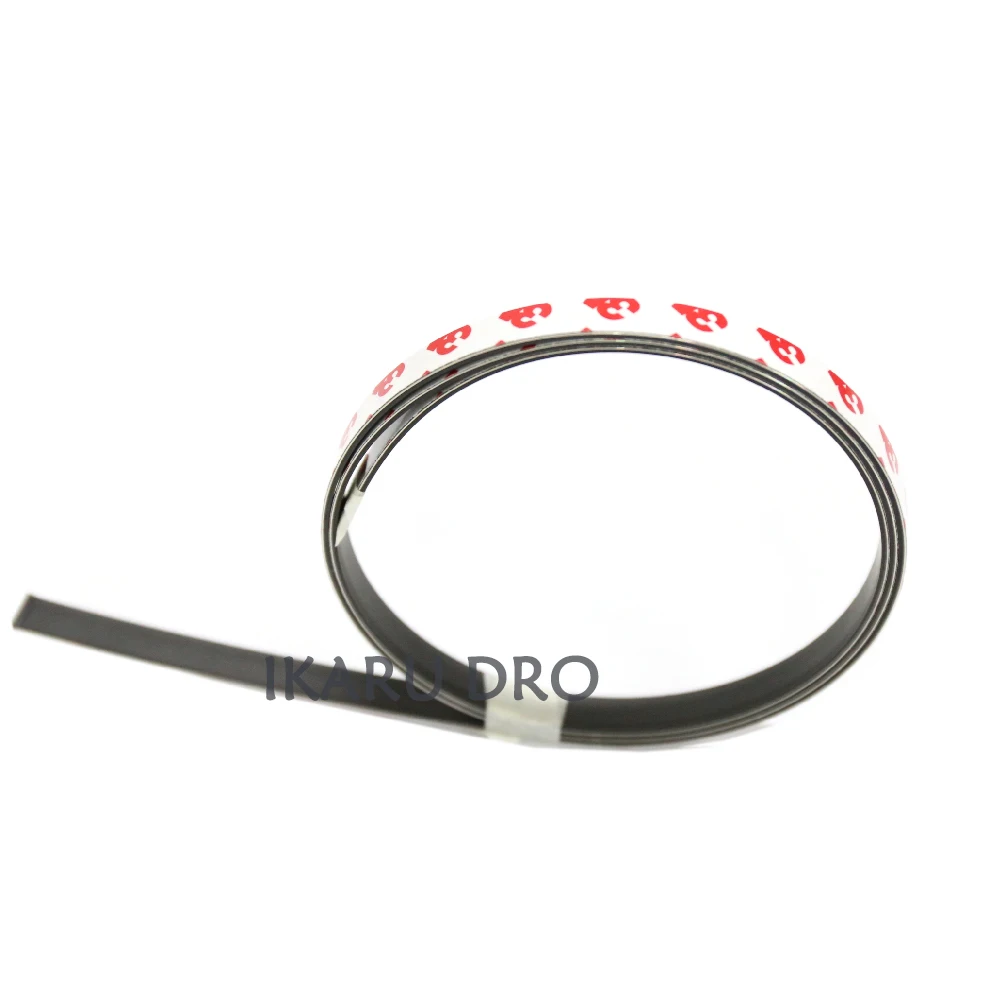

Option " Display-XX mm tape", include M503 display with sensor x 1piece, XXmm tape x 1 piece.

Note: The display do not include battery, because it unable ship the battery by shipping company, and the display can not turn off as it use very less power.

Please contact us if any question. thank you

Parameter

System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)

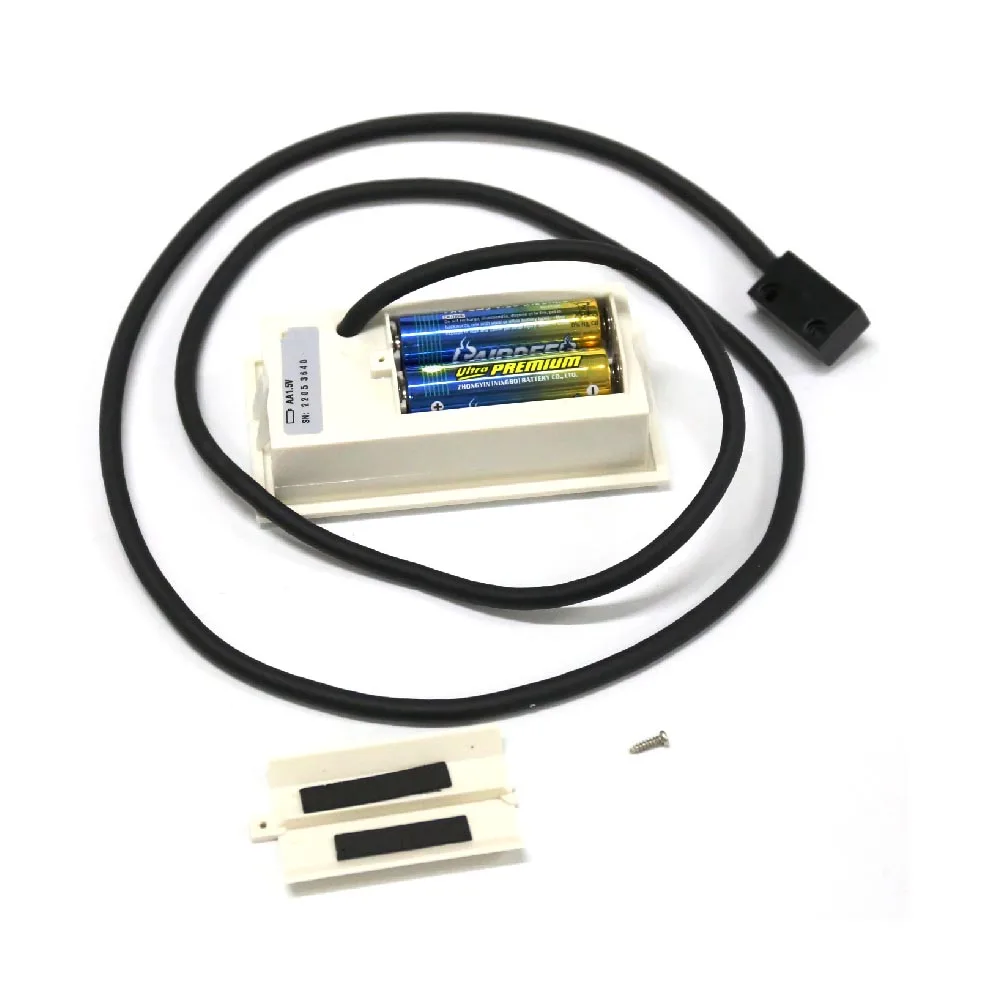

Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees Celsius -60 degrees Celsius
Storage temperature: -10 degrees Celsius -70 degrees Celsius
Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1 meter
Mobile speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: FT50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.150g

Basic datasheet

Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle
