Rational WE6800-2 WE6800-3 Digital Readout DRO Display

2 Axis / 3 Axis Digital Readout DRO Display

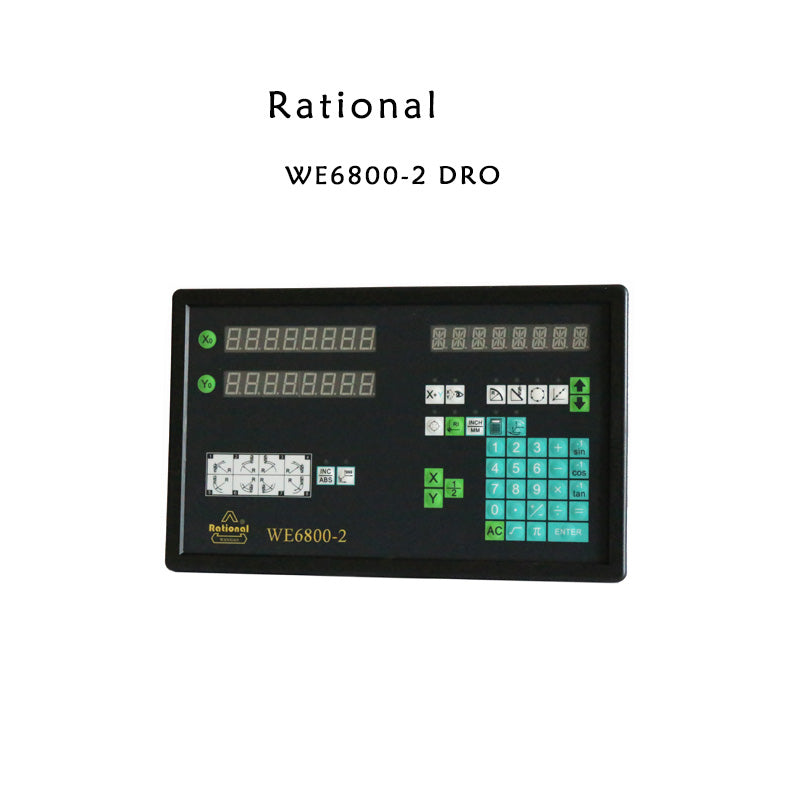

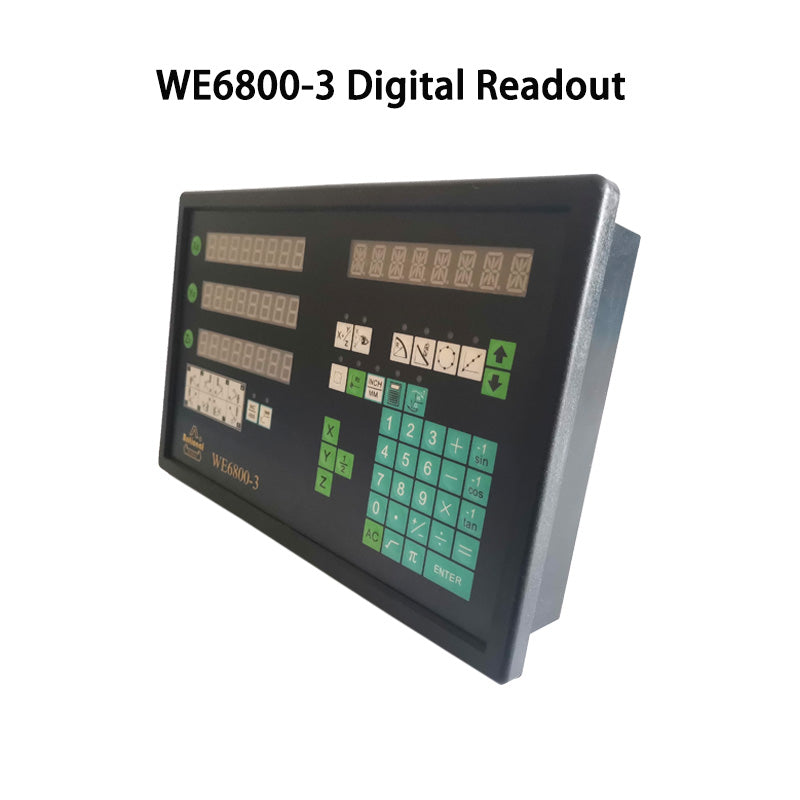

Model:WE6800-2 / WE6800-3

Number of Coordinates: 2 Axis / 3 Axis

Input Voltage: 80-260VAC 50/60Hz

Input Signal: 5V TTL / 5V EIA-422-A

Power: Max 15W

Resolution:0.5um,1um,5μm,10μm

Working temperature:-10℃-60℃

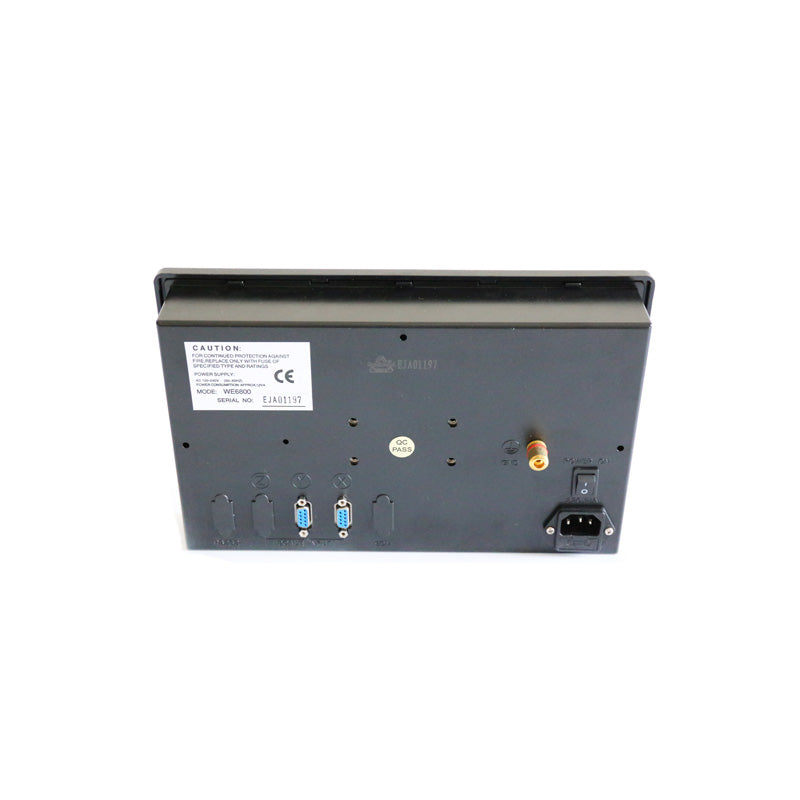

Connector:9DB(7DB/15DB customized)

Dimension:295x185x45mm

Net Weight:1.45KG

Basic Functions

1)Zeroing

2)Input Coordinate

3)Display in Metric / INCH

4)Power Off Memory Function

5)Encoder Selection

6)Resolution Setting

7)Linear Compensation

8)Counting Direction Selection

9)ABS/INC Coordinate

10) 200 sets of SDM Coordinate

11) Ref Ruler Storage Function

12) Calculator

13) Non-linear Compensation

14) 1/2 Function

15) Sleeping Function

16) RS232 (customized, cost extra)

17) Data Recovery

Special Functions

1)PLD Function

2)PCD Function

3)Simple R Function

4)Smooth R Function

5)Rectangle Chambering Function

6)Taper Measuring Function

7)200 sets of Tools

8)Radius/Diameter Conversion (lathes)

9)X+Z Function (lathes)

10)Digital Filtering Function

11)Value Combination of 2 axis in the same direction
