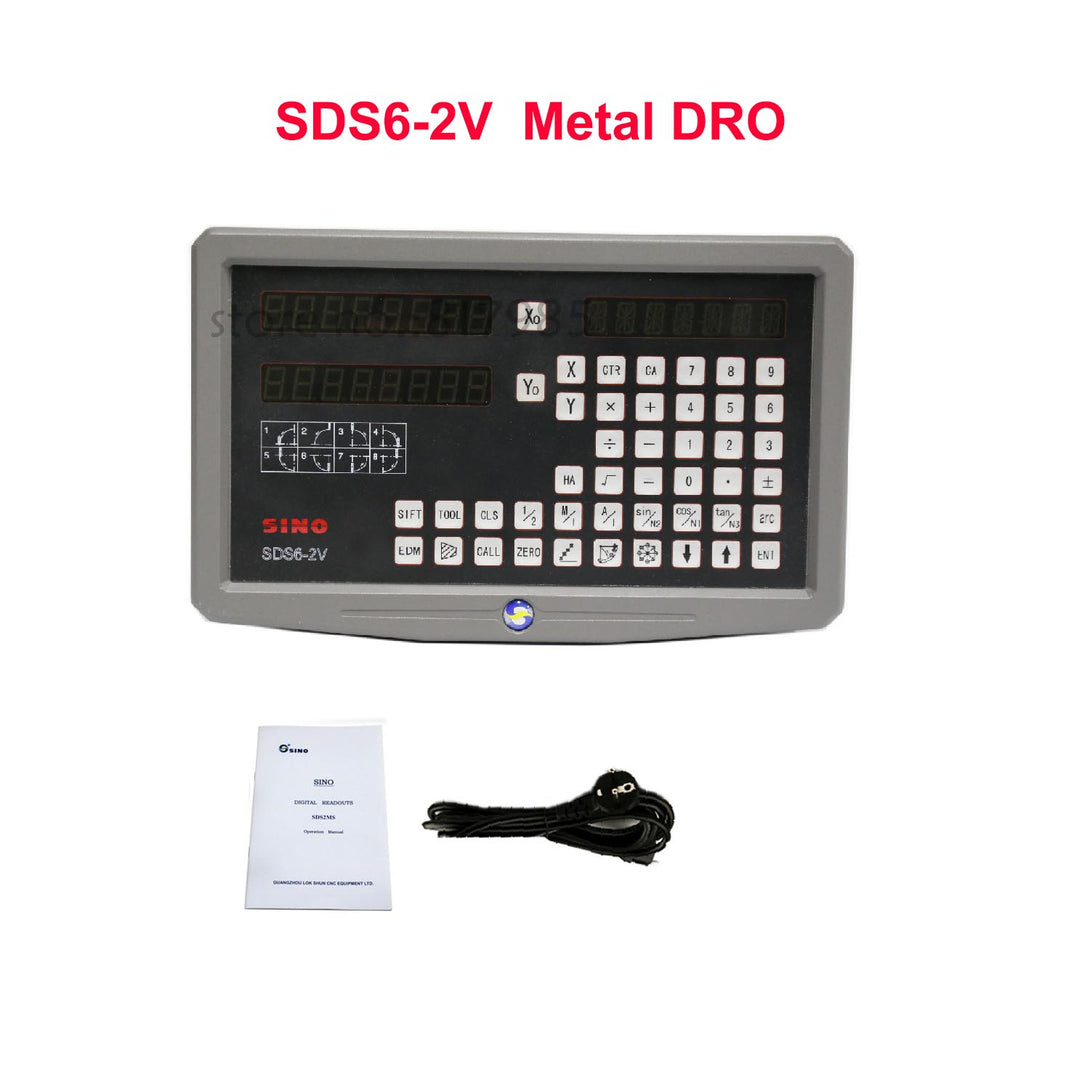

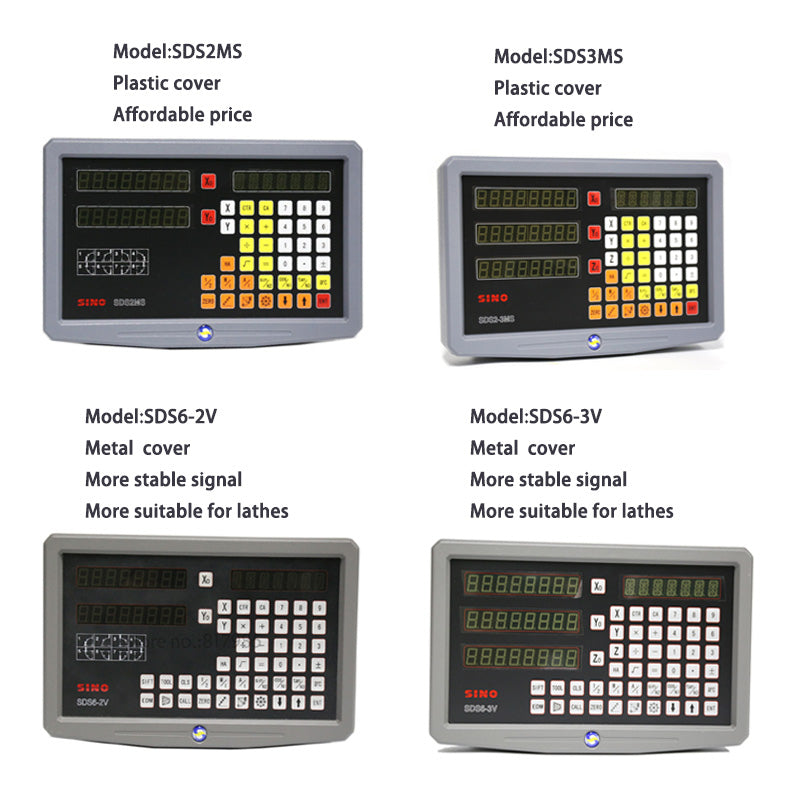

Sino 2 Axis 3 Axis SDS6-2V SDS6-3V Metal Cover Digital Readout Display SDS2MS SDS3MS Indicator

SINO 2 Axis DRO / 3 Axis Digital Readout Display Readouts for CNC Grinding Milling Lathe Machines

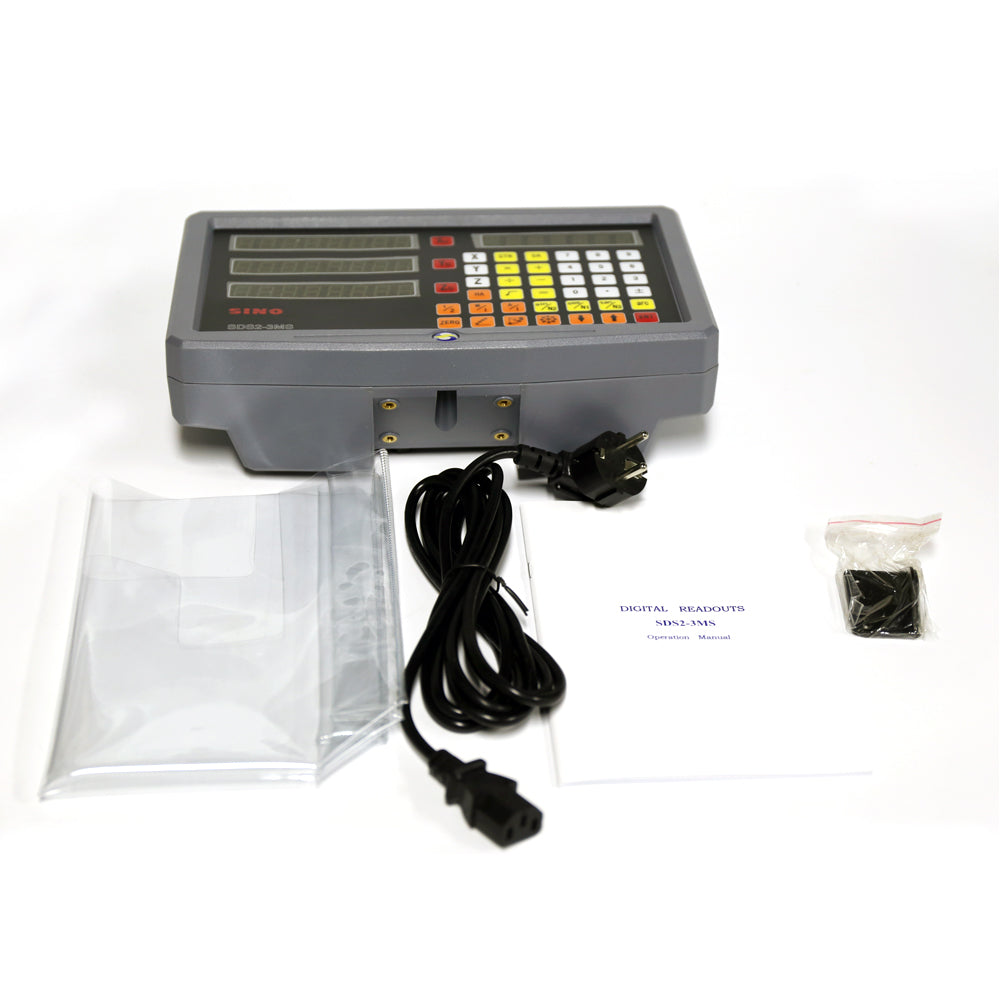

Package include:

Digital readout x 1piece;

Dust cover x 1piece;

English manual x 1piece

It is NOT include install arm, if need the install arm, please order separate at our store.

For EU buyers, it will ship from Poland free taxes.

• Number of axis: 2 Axis or 3 axis

• Supply Voltage Range: 85V-220V

• Power: 10W

• Current: 0.5A

• Working Temperature: 0-45°

• Frequency Doubling: 4x

• Keyboard: Full Closed

• Allowable Input Signal: TTL square wave or RS422

• Connectors: 9PD

• Resolutions:0.05 µm, 0.1 µm, 0.2 µm, 0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm, 20 µm, 50 µm

• Weight: 1.6 kg

• Size(L x W x H): 29.5 x 18.5 x 9.5 cm/11.61" x 7.28" x 3.74"

• The DRO is a Multifunctional 2 axis / 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

  Basic Functions
  200 Points Auxiliary Zero Position Function
  Mid-split Function
  "mm/inch" Conversion Display
  Radius/Diameter Switch Display
  Segmented Error Compensation
  Linear Error Compensation
  Power Interruption Memory
  Sleep Switch
  Mathematics calculation
  Machining Functions
  PCD circumferential division (Applicable to milling machine and spark tester)
  Involute chamber machining function (Applicable to milling machine)
  Bevel machining/Angular Surface Processing (Applicable to milling machine)
  N3 function (Applicable to milling machine)
  Diagonal boring (Applicable to milling machine)
  R-arc function (Applicable to milling machine)
  Taper measuring function (Applicable to lathe)
  200-tool library (Applicable to lathe)
  Anti-dithering function (Applicable to grinding machine)
•
