Sino KA-300 Linear Glass Scale 5um KA300 70mm-1020mm Optical Encoder Ruler

$72.00

Working length: 70mm(total length 176mm)

70mm(total length 176mm)
120mm(total length 226mm)
170mm(total length 276mm)
220mm(total length 326mm)
270mm(total length 376mm)
320mm(total length 426mm)
370mm(total length 476mm)
420mm(total length 526mm)
470mm(total length 576mm)
520mm((total length 626mm)
570mm(total length 676mm)
620mm(total length 726mm)
670mm(total length 776mm)
720mm(total length 826mm)
770mm(total length 876mm)
820mm(total length 926mm)
870mm(total length 976mm)
920mm(total length 1026mm)
970mm(total length 1076mm)
1020mm(total length 1176mm)

Output signal: TTL(default)

TTL(default)
RS422

Resolution: 0.005mm(default)

0.005mm(default)
0.001mm
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

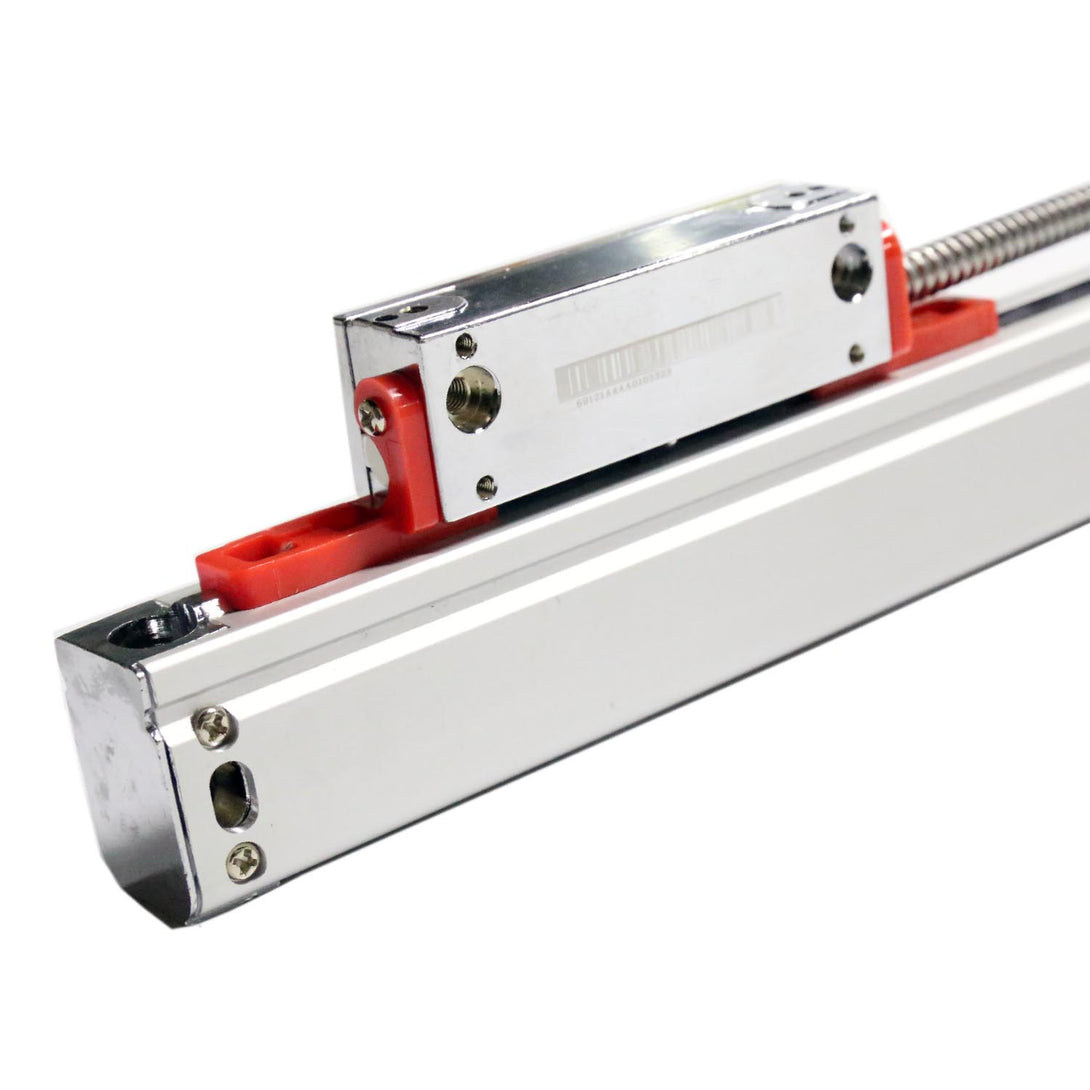

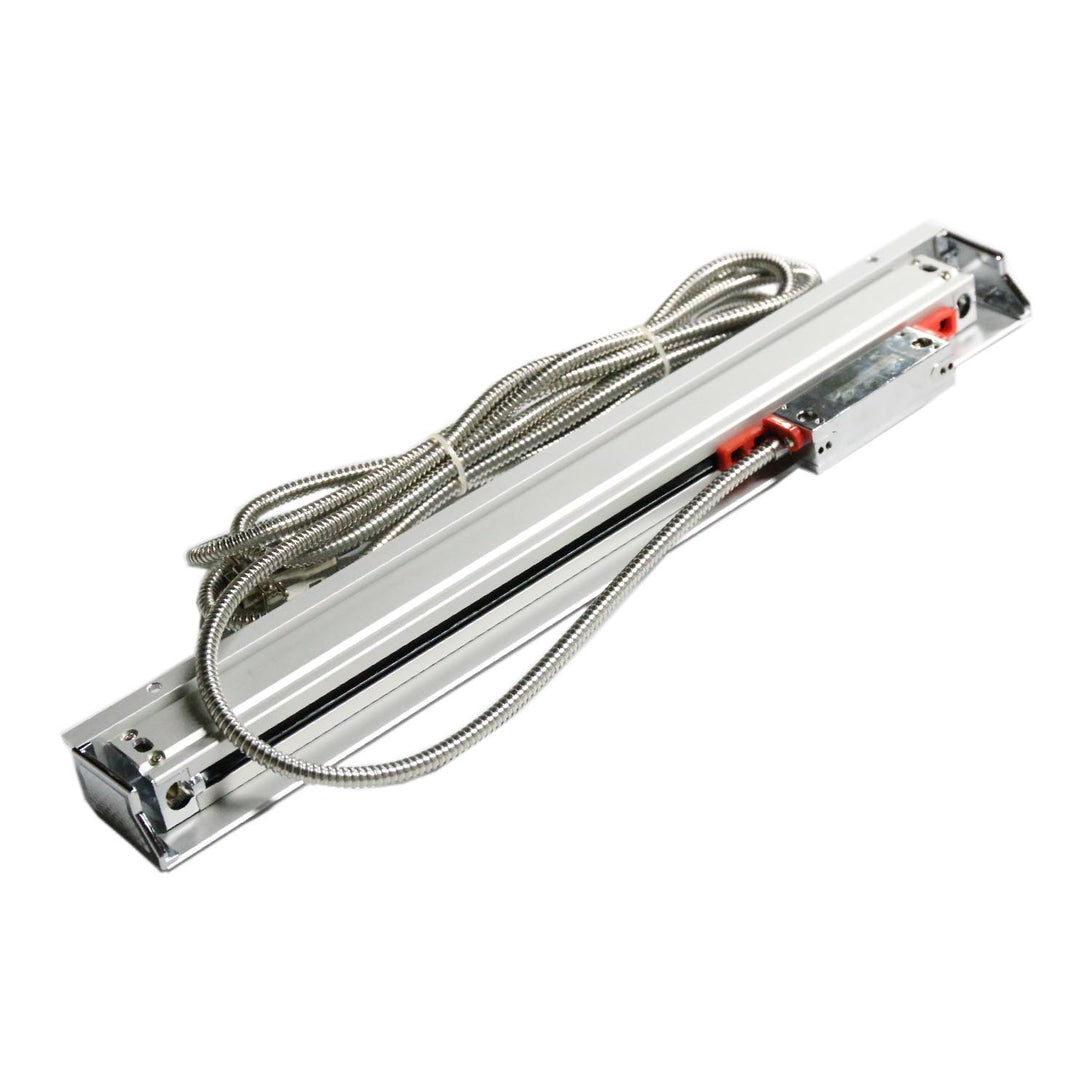

SINO KA-300 Linear Glass Scale 70-1020mm working length

KA-300 is a type of encoder with wide applications. It features in optimal structure,
good appearance and high rigidity, able to meet the needs of the majority of general
machine users. The length is 70~1020mm.

Parameter

Product name: Linear scale
Available Measure Length: 70-1020mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm) / 1um (0.001mm)
Output signal: TTL AB signal or RS422 (EIA-422-A) AA-BB- signal
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connector: 9 Pins

Normally TTL signal 0.005mm resolution for main machines such as milling, lathe ,grinder, and 0.001mm for boring machines.

Order includes

-1pcs KA-300 scale
-1pcs scale cover
-1pcs mounting bracket
-1pcs screw bag
