Package includes:
1 piece Sino KA-600 scale, 1pc scale protection cover, 1 bag screw, 2pcs install brackets
Scale futures:
*45°NSK brand five-bearing smoothy for moving the sensor
*Adopting aviation-grade aluminum, well protecting the scale bending.
*Full sealing structure, work in hard conditions, and coolant proof.
*Large size, an ideal choice for large machines.
Parameter
Product series: KA-600 Linear scale
Cross Section: 30mm X 43mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um (0.005mm) / 1um (0.001mm)
Output signal: TTL (default) or RS422 signal
Cable standard: 3 meter
Bar Pitch: 20um / 5um
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade

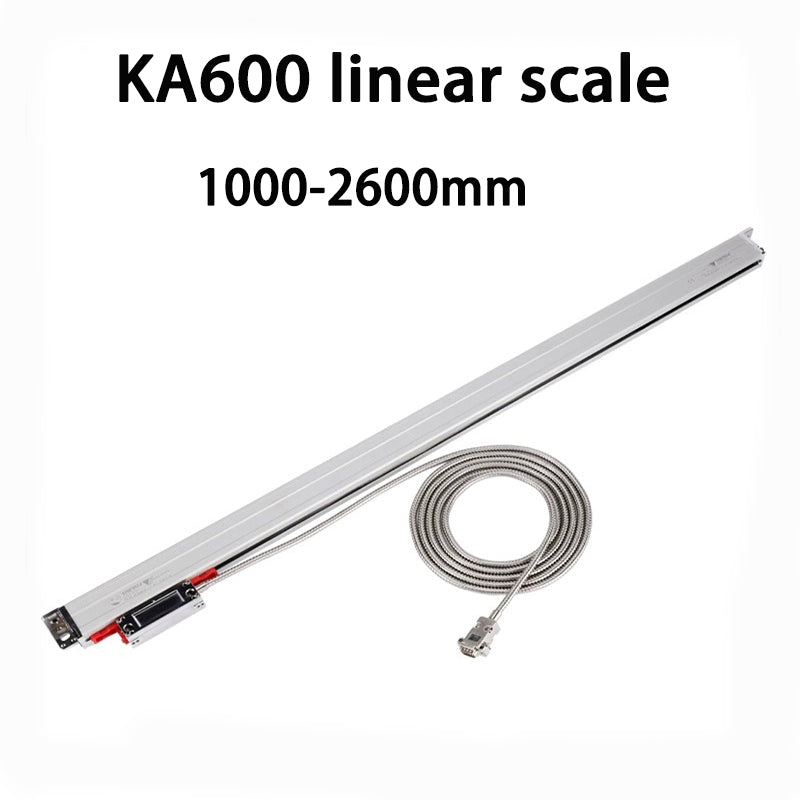

The KA600 linear scale can be 1000mm to 3000mm, but due to shipping size limited, for most country it max can ship up to 2600mm. If you need over 2600mm, please contact seller for confirm it.
