SINO LCD Digital Readout Supports 5 Language DRO Display Screen For Lathe Grinder Millilling
SINO LCD Digital Readout Supports 5 Language DRO Display Big Screen For Lathe Grinder Milling
Package include:
Digital readout x 1piece;
Power cord x 1piece;
Dust cover x 1piece
English manual x 1piece
Not include install arm, if need the install arm, please order it separately at our store.
For EU buyers, we ship it from Poland.
LCD Advantages

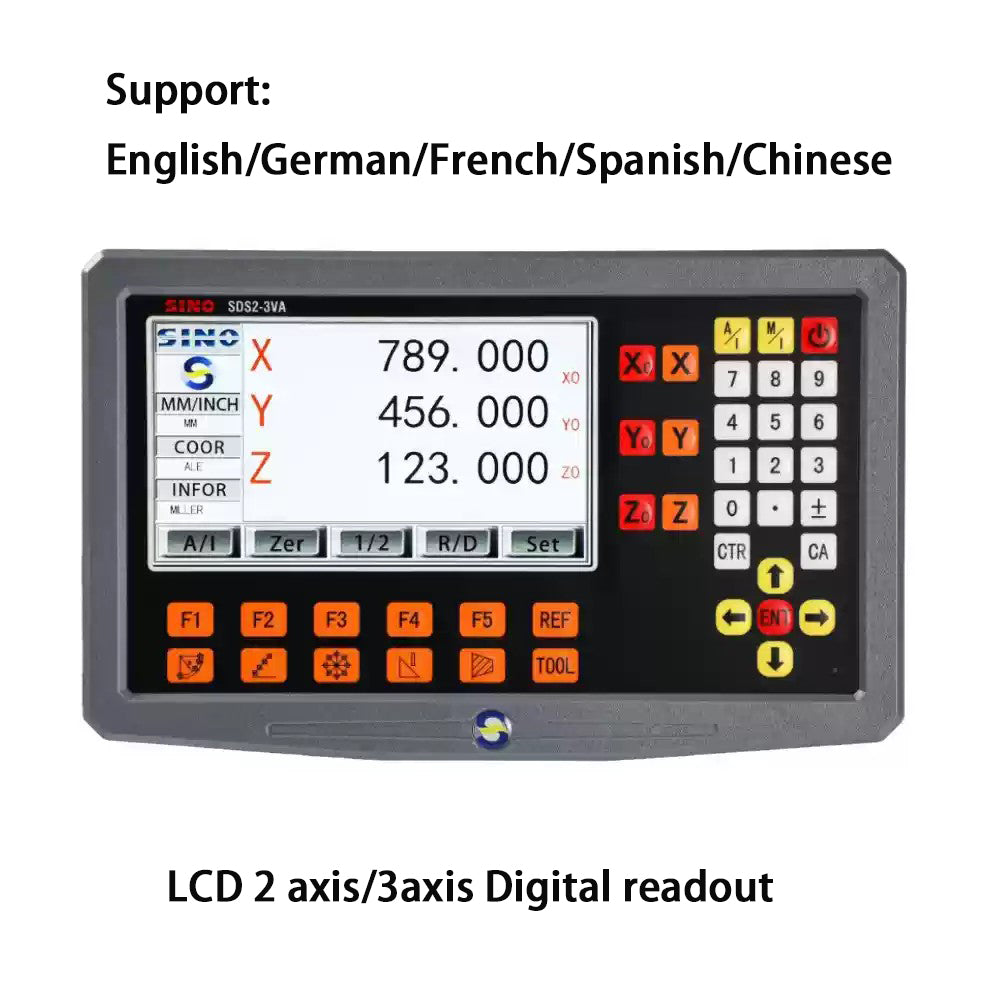

-Support 5 languages, including Chinese, German, French, English, Spanish
-Thin size ,PC cover, good signal
-Simple system, easy to operate
-Big LCD screen, clear display
DRO Features
The LCD display accepts main Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.
It can set to 5 Language by system in one display, more functional for lathe & milling machine for the users from different countries.
Parameter

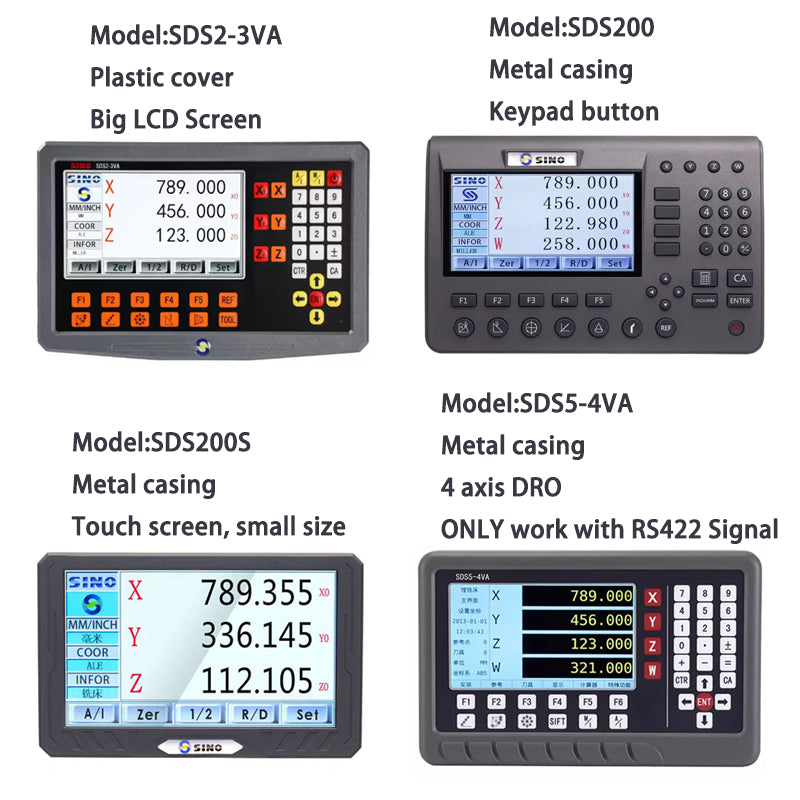

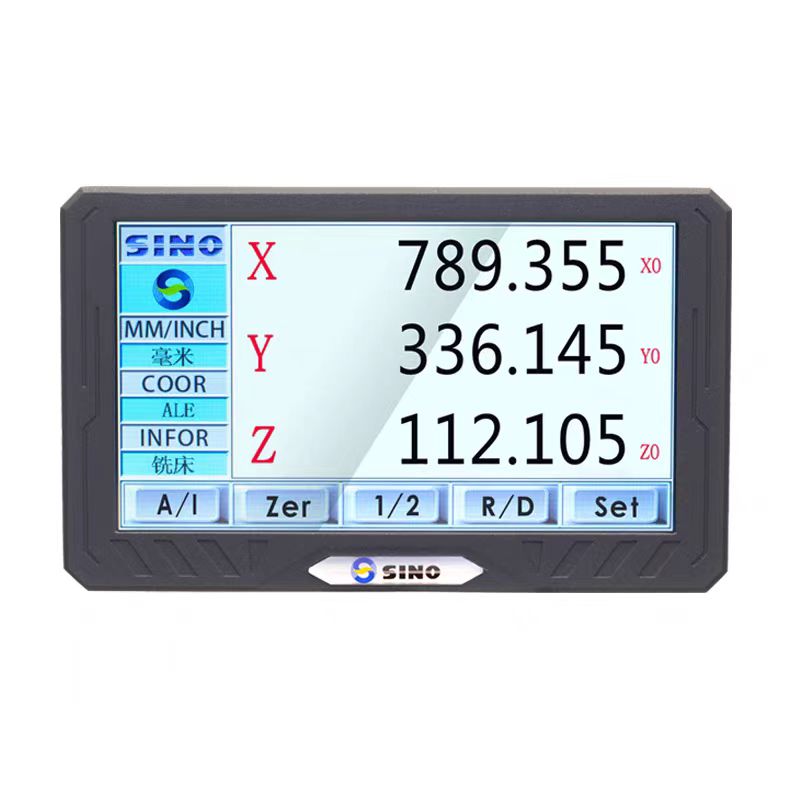

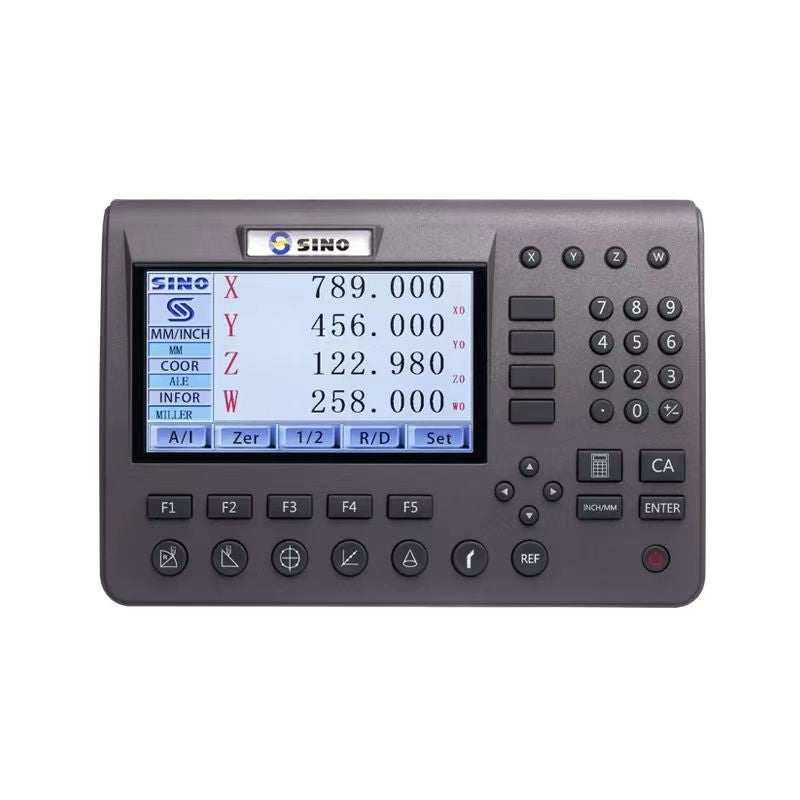

Model: SDS2-3VA / SDS200 / SDS200S / SDS5-4VA
Input voltage: AC80V-240V 50/60Hz, can be use at whole world
Input signal: TTL or RS422
Material: Metal cover / Plastic cover
Plug: AU, EU, US, UK
Specifications
The DRO offers a high performance universal display console with Milling, Lathe and Grinding functions.
Basic Functions
200 Points Auxiliary Zero Position Function
Mid-split Function
"mm/inch" Conversion Display
Radius/Diameter Switch Display
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
Sleep Switch
Mathematics calculation
Machining Functions
PCD circumferential division (Applicable to milling machine and spark tester)
Involute chamber machining function (Applicable to milling machine)
Bevel machining/Angular Surface Processing (Applicable to milling machine)
N3 function (Applicable to milling machine)
Diagonal boring (Applicable to milling machine)
R-arc function (Applicable to milling machine)
Taper measuring function (Applicable to lathe)
200-tool library (Applicable to lathe)
Anti-dithering function (Applicable to grinding machine)
