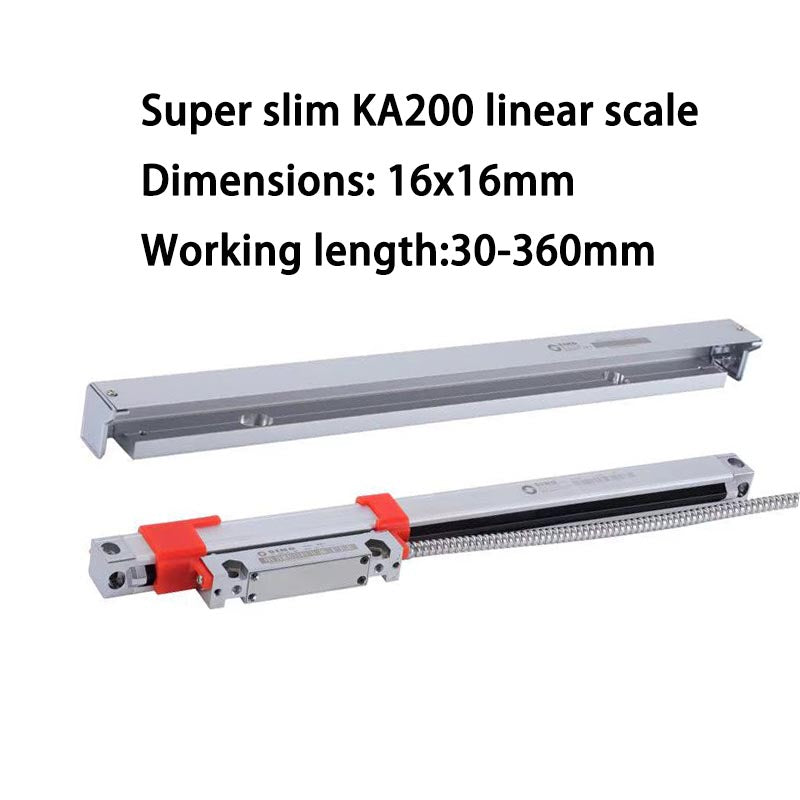

SINO Super Thin Linear Scale KA200 30-360mm 16mm*16mm Slim Optical Encoder

SINDescription

This type Sino KA-200 is the smallest ruler in the market, use on the special small machines, KA-200 with 16mm*16mm cross section may be the best choice. KA-200 is a super-miniature thin ruler, it facilitates the use in some narrow places and the installation of special purpose measuring instrument. For the KA Series of linear encoder, every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.

KA-200 Parameter

Available Measure Length: 30mm-360mm

Cross Section: 16mm X 16mm

Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)

Reference Point: one unit per 50mm

Max of Measuring speed: 60m/min

Protection level: IP55

Resolution: 5um(0.005mm) / 1um (0.001mm)

Output signal: TTL

Cable standard: 2 meters

Bar Pitch: 0.02mm

Power: +5V±5%, 80mA

Operating temperature:0-45 degree centigrade

Connector: 9 Pins

Package content:

-1 piece Sino KA-200 scale, -1 piece scale cover -1 bag screws
